PyTorch Geometric for Beginners: Create, Visualize, and Train on Graph Data

If you’re just starting out with graph neural networks using PyTorch Geometric (PyG), it can feel overwhelming. This post shares my practical notes on how to create a graph, visualize it, set up the dataset, and build a simple model using PyG. I’ve kept it minimal and functional—just enough to get you up and running.

---

1. What model.train() and model.eval() Really Mean

model.train()  # Tells the model you’re training (activates dropout, batch norm, etc.)
model.eval()   # Tells the model you’re evaluating (deactivates training-only layers)

These do not train or evaluate the model themselves. They only change the internal behavior of layers.

---

2. Create a Single Graph

import torch
from torch_geometric.data import Data

# Define edges in COO format
edges = [[0, 1, 1, 2, 0, 2], [1, 0, 2, 1, 2, 0]]
edge_index = torch.tensor(edges, dtype=torch.long)

# Node features (3 nodes, 2 features each)
x = torch.tensor([[2, 3], [-1, 2], [-4, 1]], dtype=torch.float)

# Create the data object
data = Data(x=x, edge_index=edge_index)
print(data)
# Output: Data(x=[3, 2], edge_index=[2, 6])

You can freely add new attributes to the Data object as needed.

---

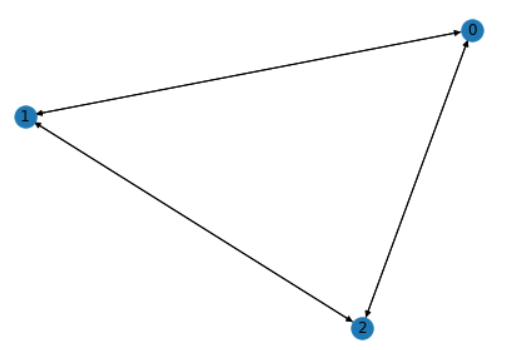

3. Visualize the Graph

import networkx as nx
from torch_geometric.utils import to_networkx

G = to_networkx(data)
nx.draw(G, with_labels=True)

Visualizing the structure often helps understand how nodes are connected.

---

4. Generate Adjacency Matrix

from torch_geometric.transforms import ToDense
import copy

dataTest = copy.deepcopy(data)
ToDense(num_nodes=3)(dataTest)
print(dataTest.adj)

Useful for checking consistency between the adjacency matrix and the feature matrix.

---

5. Random Train/Val/Test Split

from torch_geometric.transforms import RandomNodeSplit

split = RandomNodeSplit(split="train_rest", num_val=0.3, num_test=0.6)
data = split(data)

print(torch.sum(data.train_mask).item())
print(torch.sum(data.val_mask).item())
print(torch.sum(data.test_mask).item())

Adds train_mask, val_mask, and test_mask to your Data object.

---

6. Build a Simple GCN Model

from torch.nn import Linear
from torch_geometric.nn import GCNConv

class GCN(torch.nn.Module):
    def __init__(self, in_features, out_classes):
        super().__init__()
        self.conv1 = GCNConv(in_features, 4)
        self.conv2 = GCNConv(4, 4)
        self.conv3 = GCNConv(4, 2)
        self.classifier = Linear(2, out_classes)

    def forward(self, x, edge_index):
        h = self.conv1(x, edge_index).tanh()
        h = self.conv2(h, edge_index).tanh()
        h = self.conv3(h, edge_index).tanh()
        return self.classifier(h), h

---

7. Training Function

import torch.nn.functional as F

def train(model, data, optimizer):
    model.train()
    optimizer.zero_grad()
    out, _ = model(data.x, data.edge_index)
    loss = F.cross_entropy(out[data.train_mask], data.y[data.train_mask])
    loss.backward()
    optimizer.step()
    return loss.item()

Use CrossEntropyLoss if your model outputs raw logits.

---

8. Run Training Loop

model = GCN(data.num_features, num_classes=4)
optimizer = torch.optim.Adam(model.parameters(), lr=0.01)

for epoch in range(200):
    loss = train(model, data, optimizer)
    if epoch % 10 == 0:
        print(f"Epoch {epoch}, Loss: {loss}")

---

9. Count Trainable Parameters

print("Trainable params:", sum(p.numel() for p in model.parameters() if p.requires_grad))

---

Final Thoughts

This note doesn’t cover everything but touches the key steps: how to create a graph, visualize it, prepare data, and build a simple GCN model. If you’re just starting out with PyG, I hope this helps get you past the initial barrier.

---
